CLAVIS supports you right from the start with expertise for the requirements of your vault facilities.
strongrooms.net · CLAVISStrongrooms
Strongrooms
in modular and
solid construction.
Certified vault construction by Clavis: design, delivery and installation of vaults in solid, modular and mixed construction with corresponding strongroom door - we will prepare an individual offer for you.
Contact us for a customised offer ↗
STRONGROOMS · CLAVIS04 / Certifications
CLAVIS - a certified company
01 / What we do
CLAVIS - what we do
Expert project planning and physical execution of strongroom systems in modular, solid and mixed construction as well as installation of the strongroom door in the appropriate security level - CLAVIS is your qualified partner in all project phases of your strongroom construction.
02
Planning
Construction planning using 3D modelling for your individual strongroom.
03
Quality
CLAVIS supplies high-security certified strongrooms and strongroom doors in classes 1 to 13 KB EX according to EN 1143-1.
04
Service
Strongroom technology from one company - CLAVIS: assembly, disassembly, construction, repair, dismantling, removal.
02 / Portfolio
CLAVIS - Portfolio
We build tested and certified strongrooms in all security levels according to EN 1143-1 for private customers and business clients from the retail, banking and public sectors.

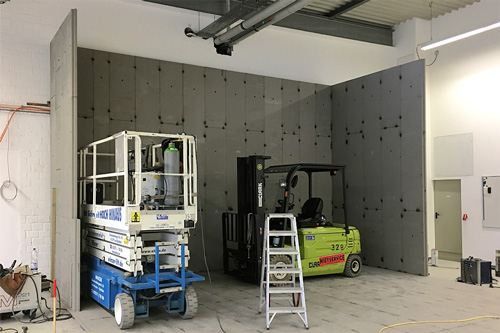

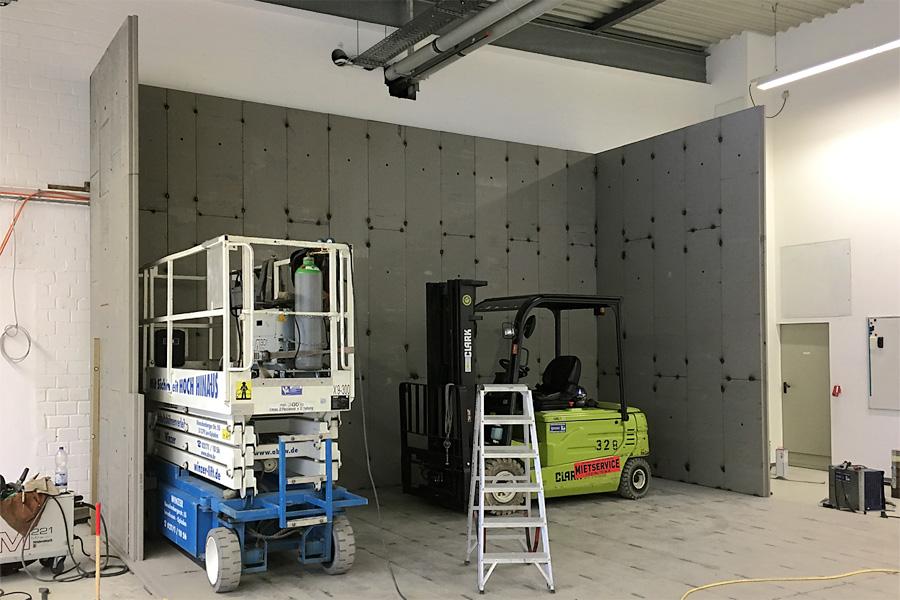

Modular strongroom grade 3 - construction
Project details
Modular strongroom grade 3
A strongroom of security level 3 / III according to EN 1143-1 is approved for the storage of narcotics and pharmaceuticals.
Technical details for modular safe room elements grade 3 / III (EX)
- Element length (max): 2900 mm
- Element width (max): 600 mm
- Wall thickness: 70 mm
- Weight: 210 kg/m² panel area
The modular element is available in widths (internal room dimension) of 100 mm, 150 mm, 200 mm, 250 mm, 550 mm and 600 mm. With this, rooms can be realised in 50 mm steps. The strongroom element is limited to a maximum length of 2900 mm. Larger spans are realised with static beams in the ceiling area.

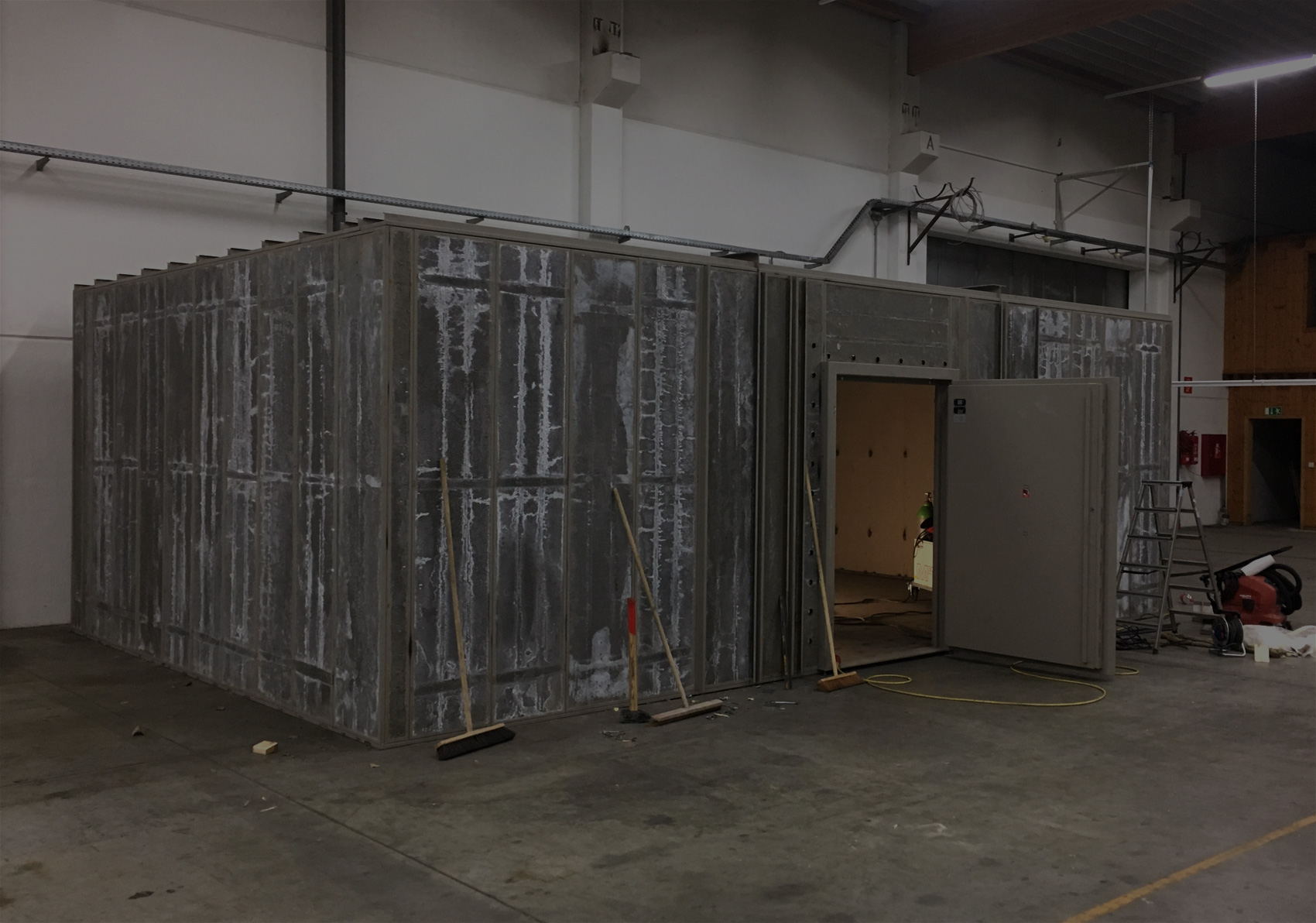

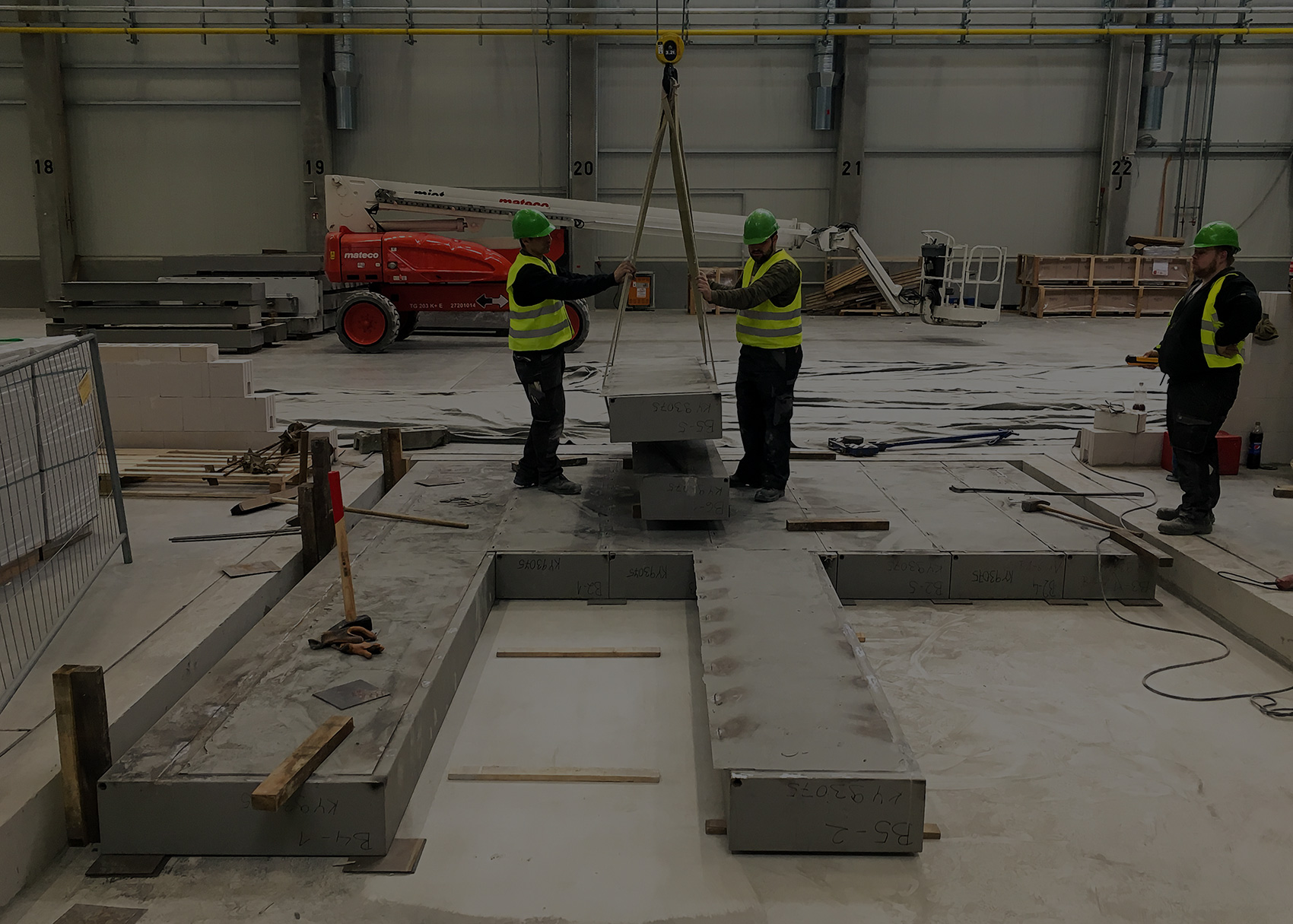

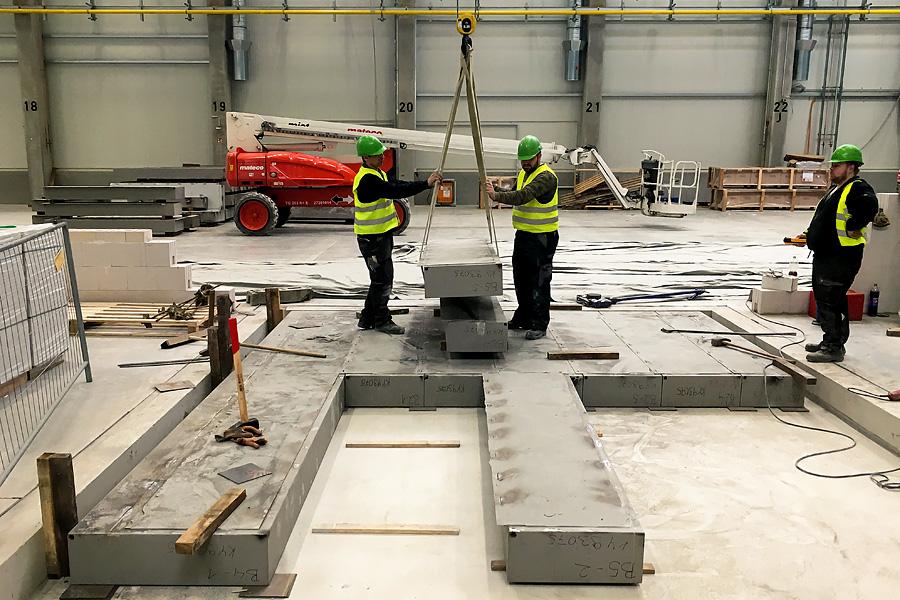

Modular strongroom grade 11 CD - dismantling and reconstruction
Project details
Strongroom grade 11 CD
Dismantling and reconstruction of a strongroom in modular construction grade 11 CD (with core-drill protection)
Specifications
- Wall thickness of the modular panels: 250 mm
- External dimensions in mm (HxWxD): 3300 x 4500 x 8000
- Internal dimensions in mm (HxWxD): 2800 x 4000 x 7500
- Ceiling girder: 2 pieces
- Total weight: 104 tons
- Door weight: 2,4 tons

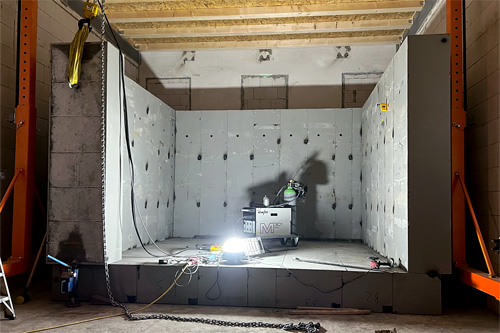

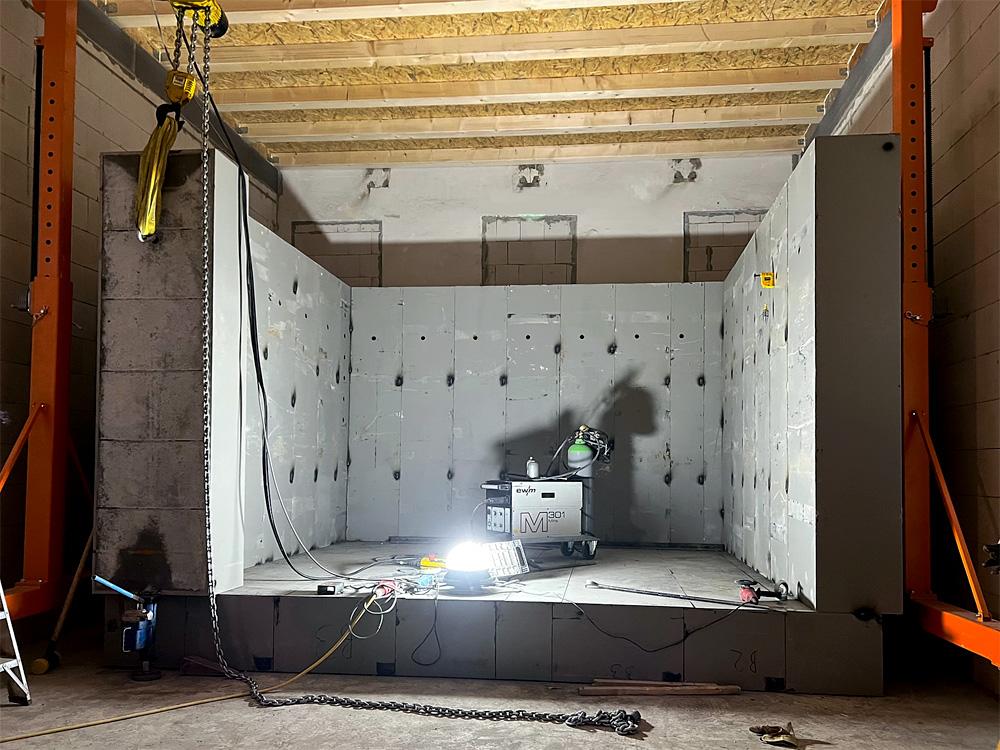

Strongroom grade 13 CD EX - construction
Project details
Strongroom grade 13 CD EX - construction
The modular element of the strongroom in security grade 13 CD EX according to EN 1143-1 consists of a multi-folded sheet steel tray with an insert of special reinforcement, which is filled and compacted with extremely high-strength, resistant, cement-based filling and also has special reinforcement against core drilling attacks (CD).
Specifications
- Wall thickness of the modular panels: 415 mm
- Weight: 1220 kg/m²

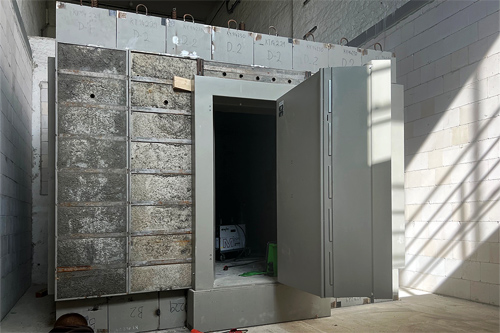

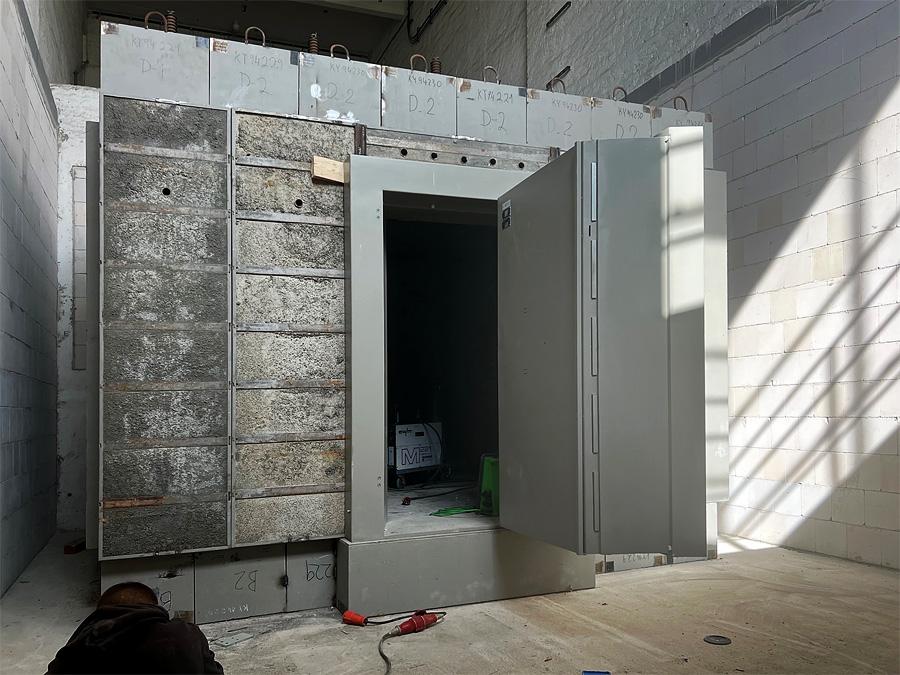

Strongroom door grade 13 CD EX
Project details
Strongroom door grade 13 CD EX
Construction of a strongroom with strongroom door grade 13 CD EX according to EN 1143-1.
Specifications
- The deadbolt is protected against attempted break-ins with mechanical or thermal tools by a so-called drilling and cutting fuse. In the CD version, armouring has been incorporated into the door which protects the entire door against attacks with core drills.
- Door thickness: 365 mm
- Door weight: 4,3 tons

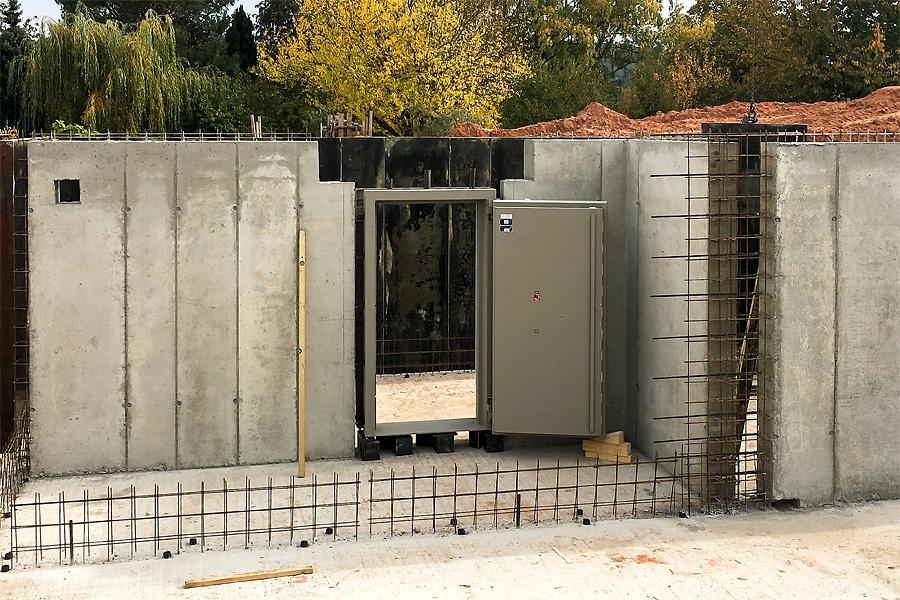

Strongroom door installation
Project details
Strongroom door installation
All transport services for strongroom doors are carried out by CLAVIS with detailed logistical planning in advance. Due to the heavy weight and size of the strongroom doors, moving them to the installation site requires precise planning of the transport route outside and inside the building.
As a certified service company, we provide special vehicles, crane trucks and special equipment for difficult local conditions to ensure safe and fast movement to the installation site.
Image: Installation of a strongroom door grade 10 CD according to EN 1143-1 into a strongroom in solid design

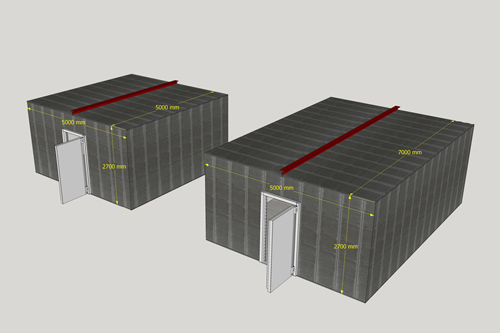

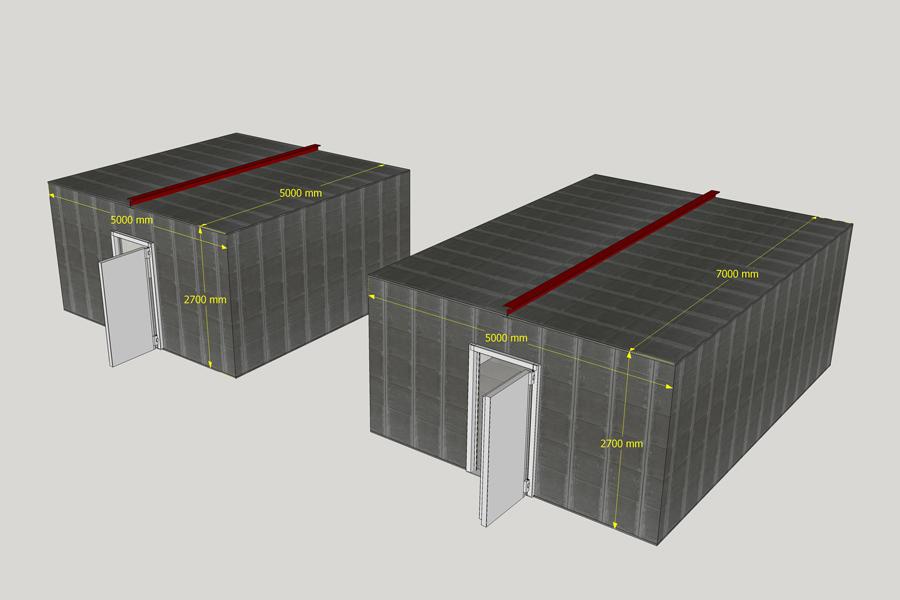

3 D models for strongrooms
Project details
3 D modelling for strongrooms
We are planning your individual strongroom by drawing 3 D models.
From planning to execution
- CLAVIS offers high-security solutions for the construction of strongroom systems to private and business customers in the retail, banking and public sectors.
- Professional project management
- Construction execution of strongrooms including strongroom doors
- CLAVIS supplies certified quality "Made in Germany"
Advantages of strongrooms in modular construction
Modular strongrooms are available in resistance grades 1 to 13 CD EX in accordance with the European EN 1143-1 standard
- Modular strongrooms according to EN 1143-1 standard are compact and relatively light in construction - with the same degree of resistance compared to solid construction. They are built in dry construction.
- A smaller wall thickness for the safe room modules increases the usable capacity. Example: 400 mm wall thickness in solid construction is reduced - with the same resistance grade - to 70 mm wall thickness in the modular system.
- Modular strongroom systems can be retrofitted into existing areas. The structural analysis / ceiling load-bearing capacity must be clarified in advance by the customer.
- The room-in-room system retains its value. It can be dismantled and reassembled at a different location if you move or relocate.
- The elimination of drying times for the concrete results in a shorter construction time for the modular strongroom. Completion is possible within 3 to 4 weeks from delivery of the modules.
- Download CLAVIS Brochure Strongroom in Modular Construction (PDF)
